patchbox.one / Frame

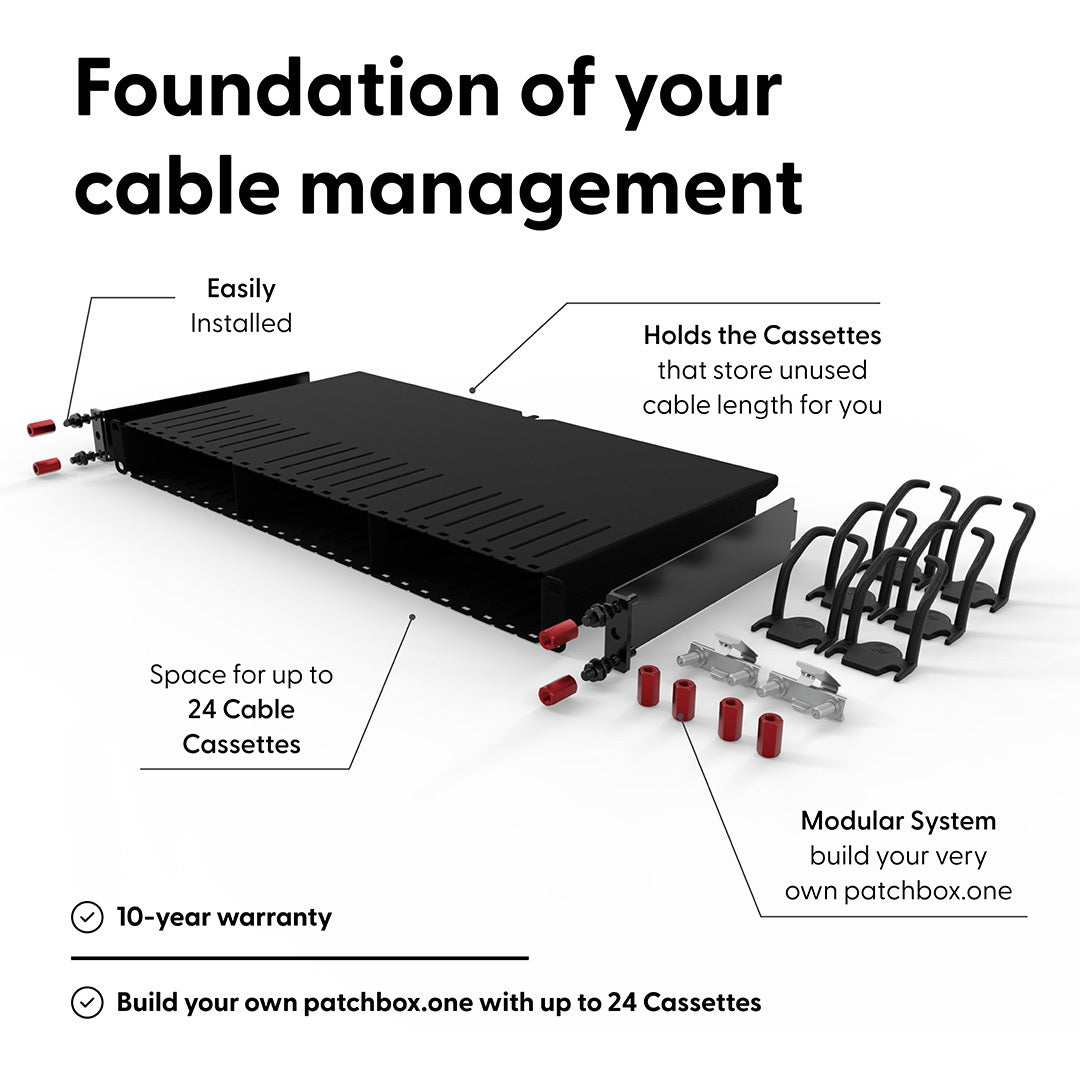

A modular rack frame that creates a clean, scalable foundation for structured cabling in any 19″ rack.
- Fast, tool-free mounting in any rack (threaded and square-punched rails)
- Holds up to 24 swappable cassettes you can rearrange in seconds
- Reconfigure connections without any tools or downtime
- Compatible with all patchbox.one cassettes and older PATCHBOX systems
- Modular design with 10-year warranty
€124.00 excl. VAT
Product Description
The Structural Core of Your Rack
Forms the stable backbone of your cable management, supporting up to 24 cable cassettes in a clean, organized 19″ rack layout.
Adapts as Your Network Evolves
Combine cable cassettes and blind panels freely. Swap or reposition them in seconds as your requirements change.
Designed for Seamless Upgrades

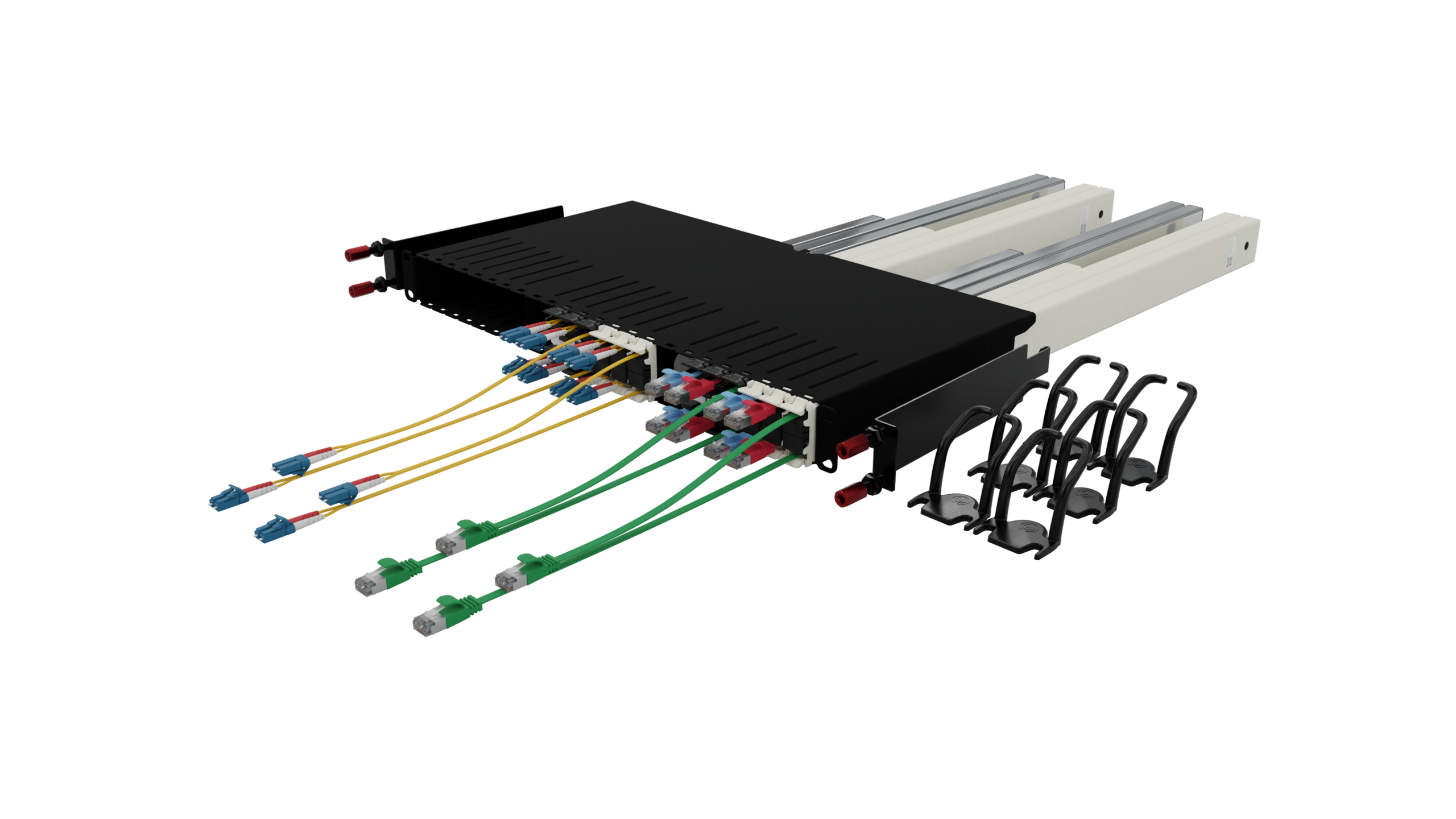

Fully compatible with all current modules and previous PATCHBOX systems, making expansion or migration straightforward and risk-free.
User-Friendly by Design
Optimized for fast, tool-free mounting to reduce install time and keep rack work clean and efficient.
Made for Professional Environments
Built for continuous use in server rooms and data centers, delivering long-term stability and reliability backed by a 10-year warranty.
Technical Specification
| Product gross weight | 2.65 kg / 5.84 lbs |
| Packaging dimensions | Width: 520 mm Height: 50 mm Depth: 250 mm | Width: 20.47 in Height: 1.96 in Depth: 9.84 in |
| Material | RAL9005 powder coated steel (Frame), Steel and RAL9005 (Mounting Rails) |
| Country of origin | Thailand |
| Custom Tariff Number | 85447000 |
Mounting is simple: 8RU Frames use the /dev/mount, while 30RU and 46RU Frames require mounting rails.

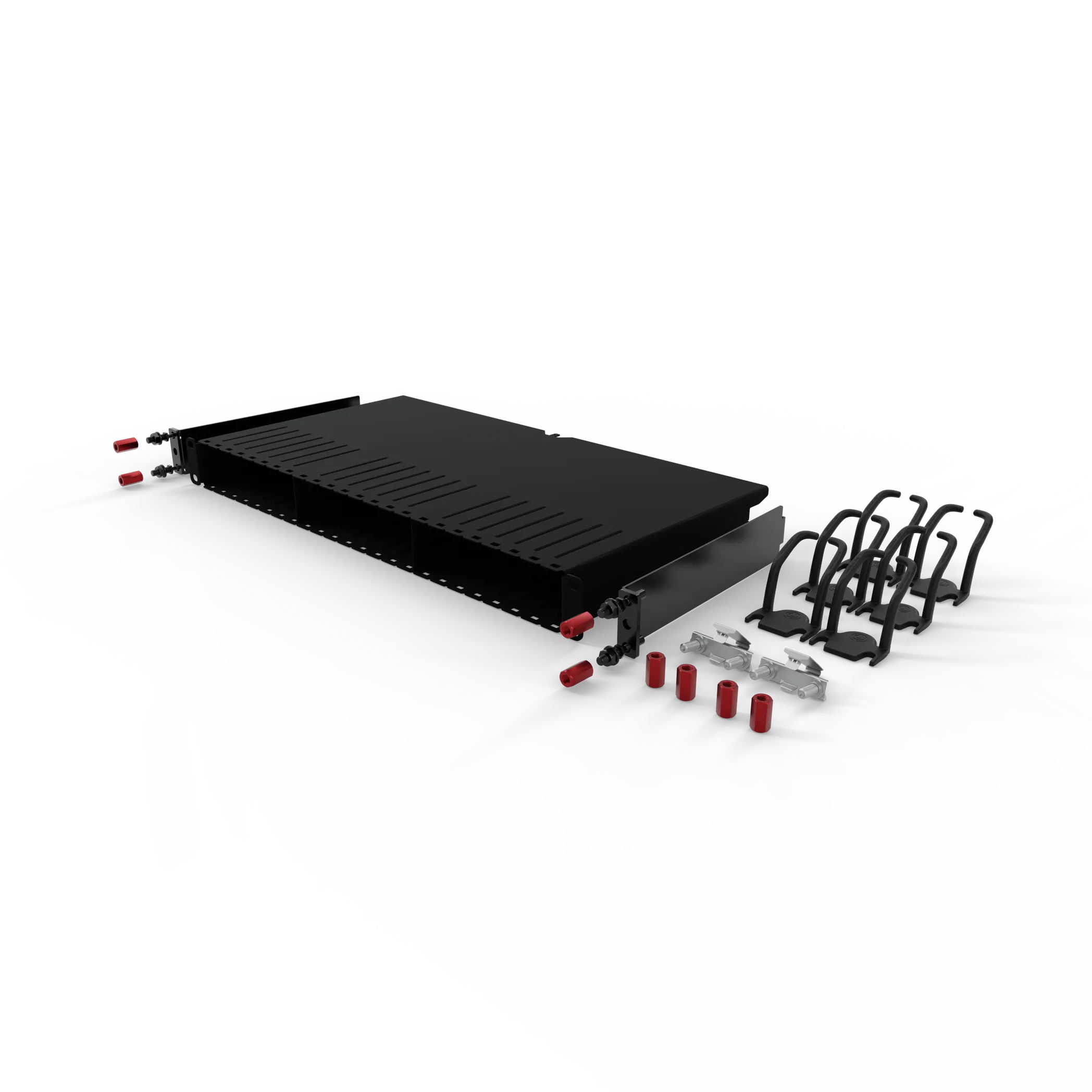

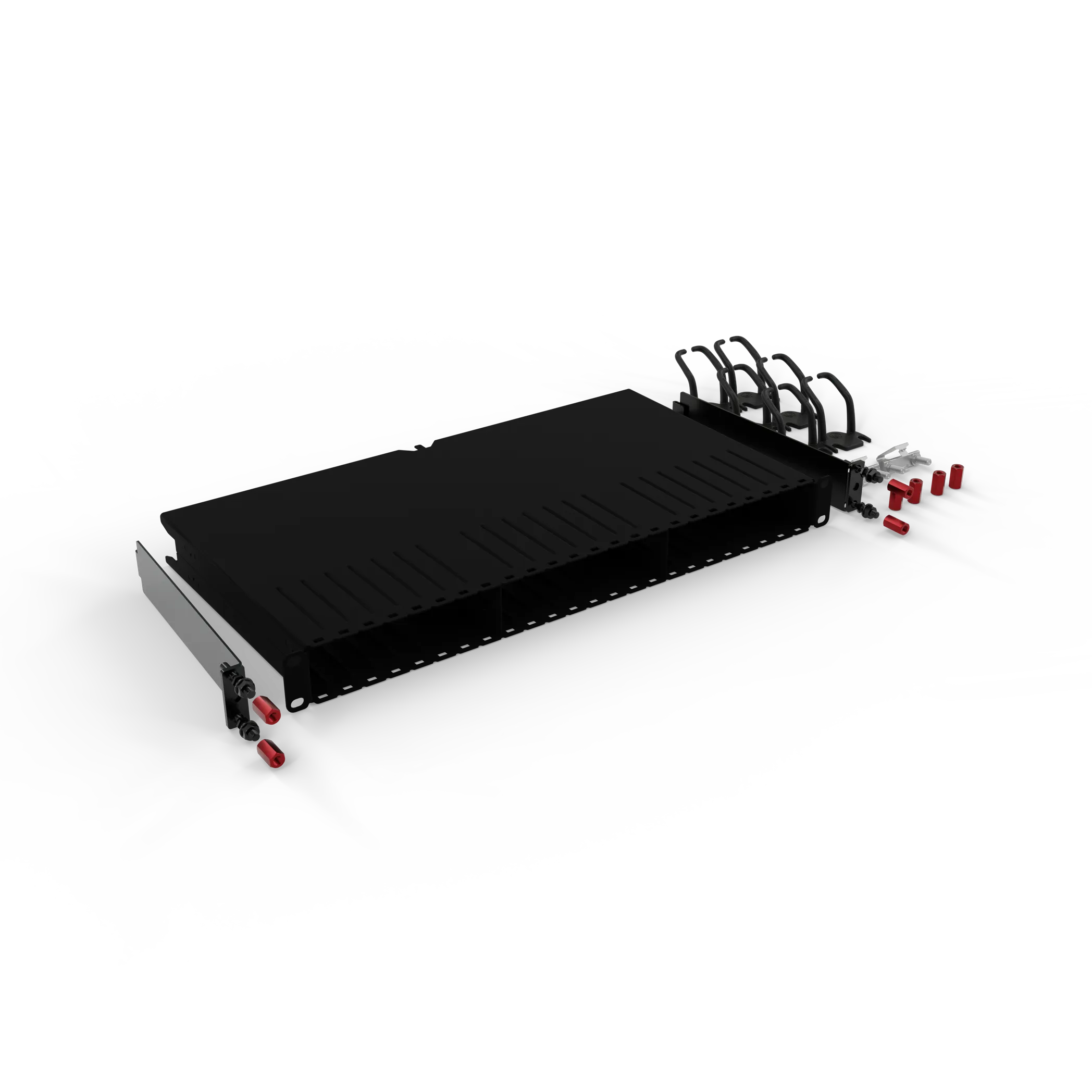

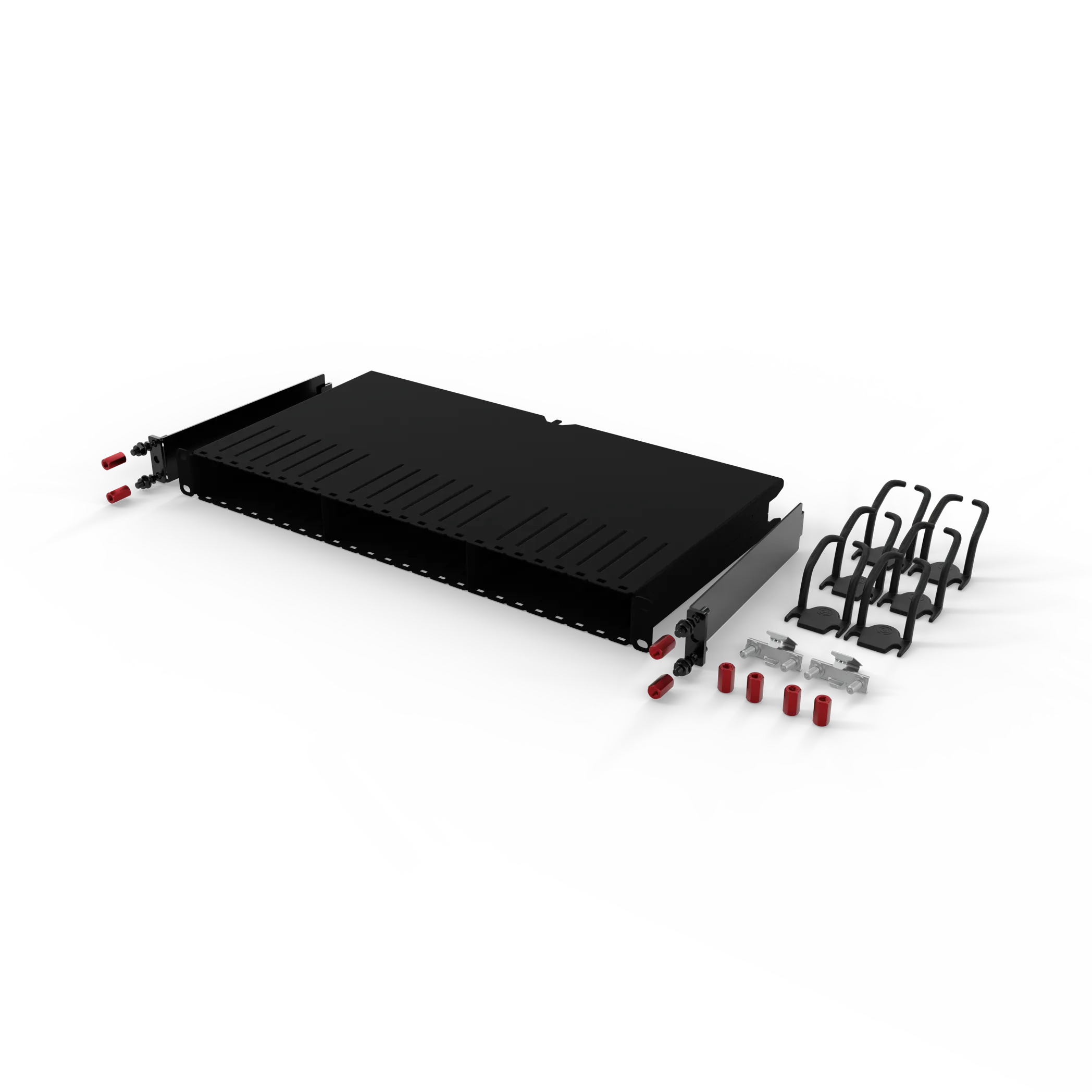

Items included
1 x patchbox.one / Frame
2 x Mounting Rails
2 x /dev/mount
4 x Flanged Hex Nuts
8 x Hex Nuts
6 x Patchcatch
Instructions & Manual
How It Works
- Mount the Frame with the included accessories (/dev/mount for 8RU, Mounting Rails for 30RU and 46RU)
- Add the Patchcatch on both sides of the rail and the Frame

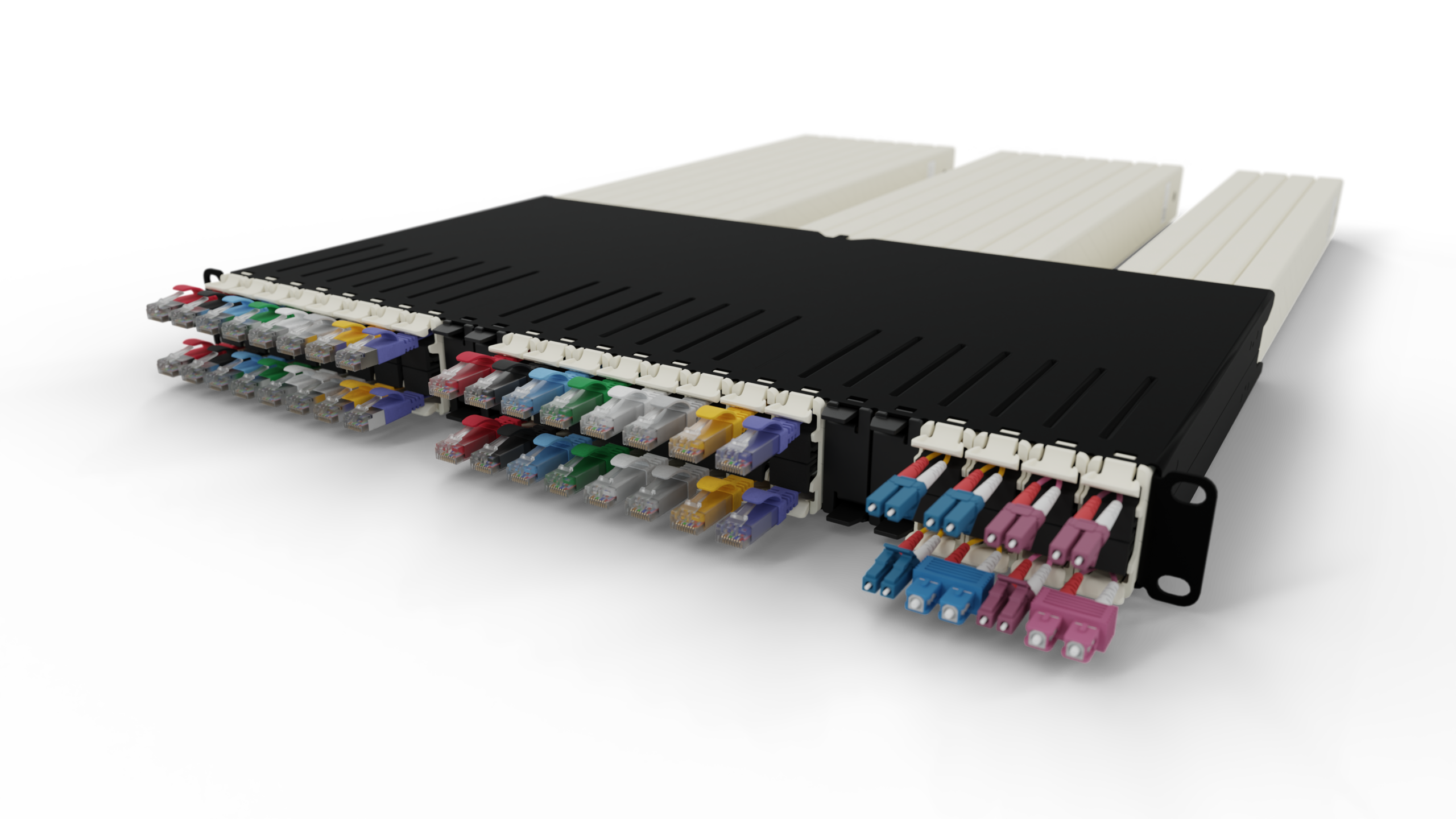

- Slide the Cassettes into the Frame
